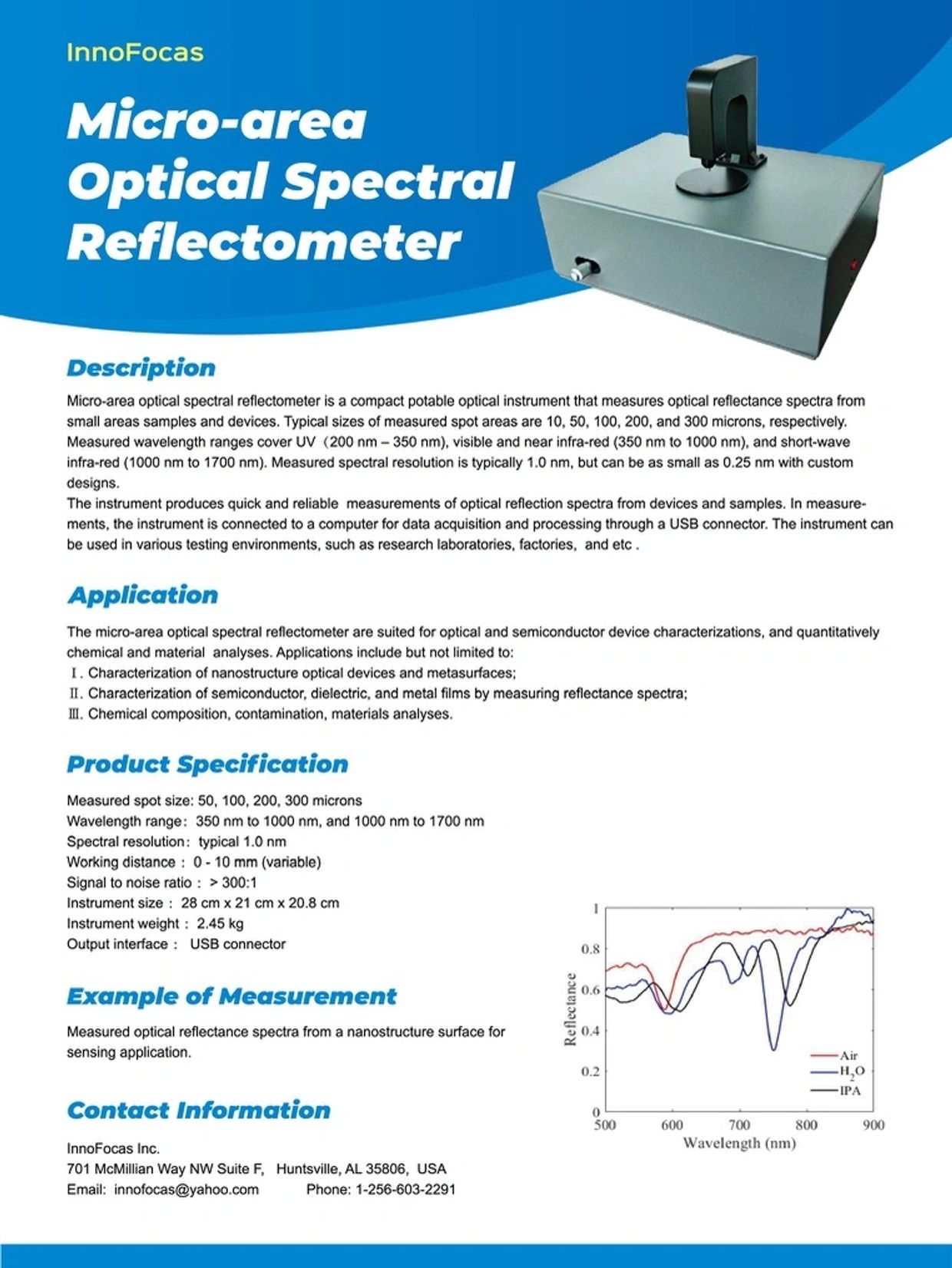

Micro-area Optical Spectral Reflectometer
Product Information
The micro-spot optical spectra reflectometer is a portable compact optical instrument that can measure optical reflectance spectra from a small area of devices. Typical sizes that can be measured are 5, 10, 50, 100, 200, and 300 microns. Wavelength ranges cover UV (200 – 350 nm), visible and near infra-red (350 to 1000 nm), and short-wave infra-red (1000 to 1700 nm), respectively. Spectral resolution of measurement is typically 1.0 nm, but can be as small as 0.2 nm.
The instrument can also be used to measure dynamic changes of the spectrum with time for tracking spectral features (such as peaks or valleys) in the reflection spectrum.
The instrument produces quick and convenient measurement of optical reflection spectra from small device areas. In measurement, the instrument is connected to a computer via a USB connector for data acquisition and processing. The instrument can be used in various application settings, such as research laboratories, factories, and etc.
